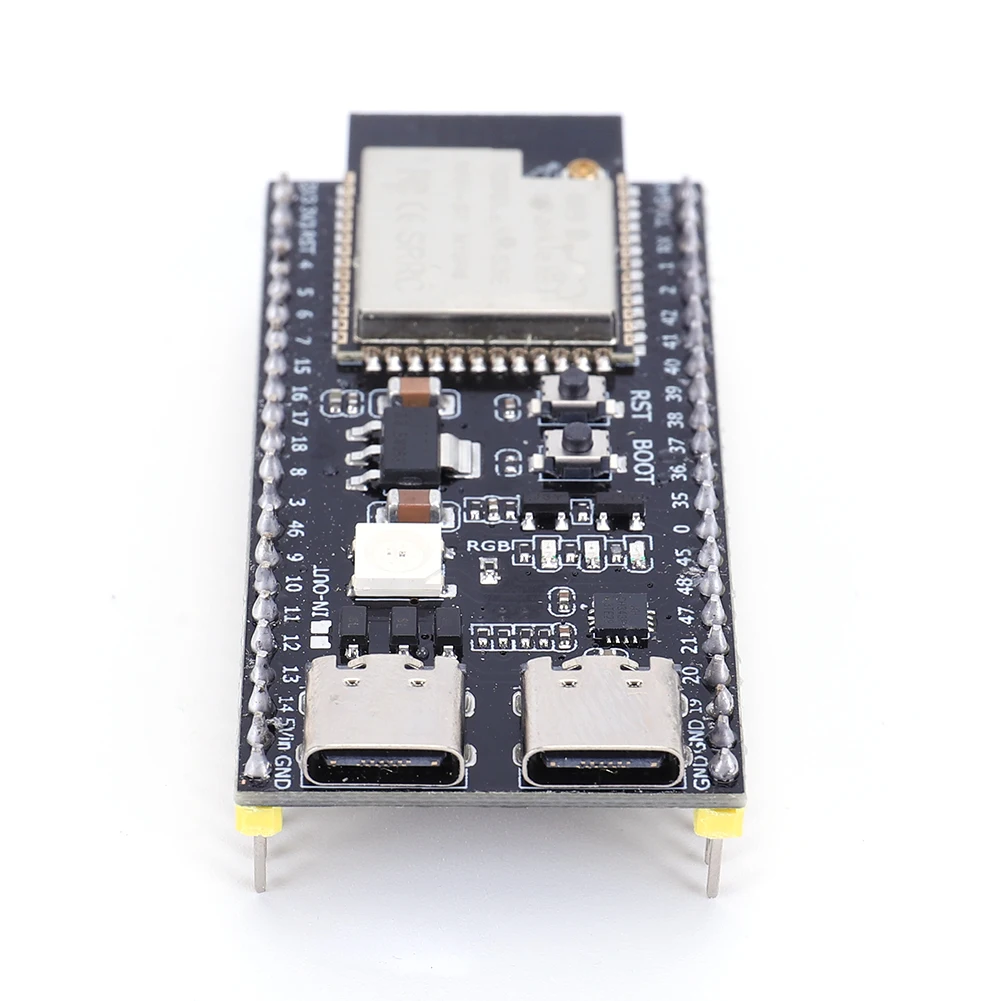

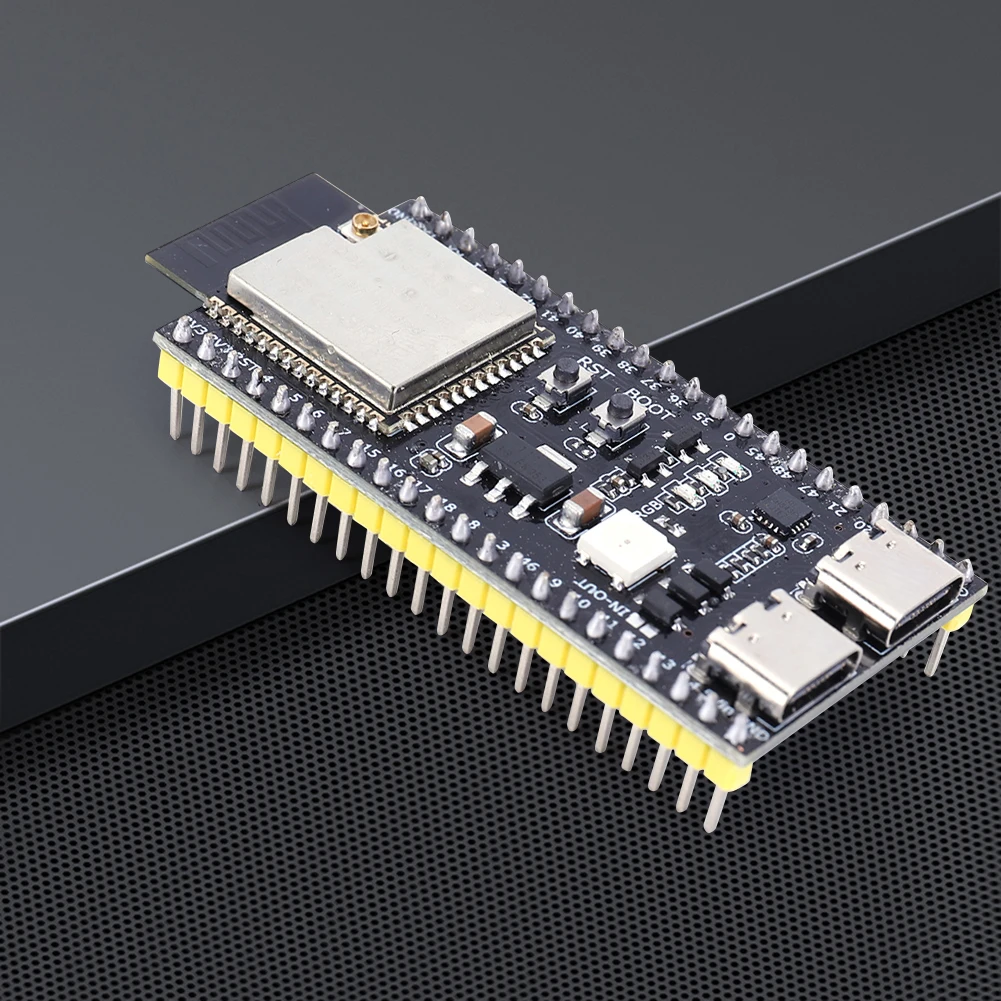

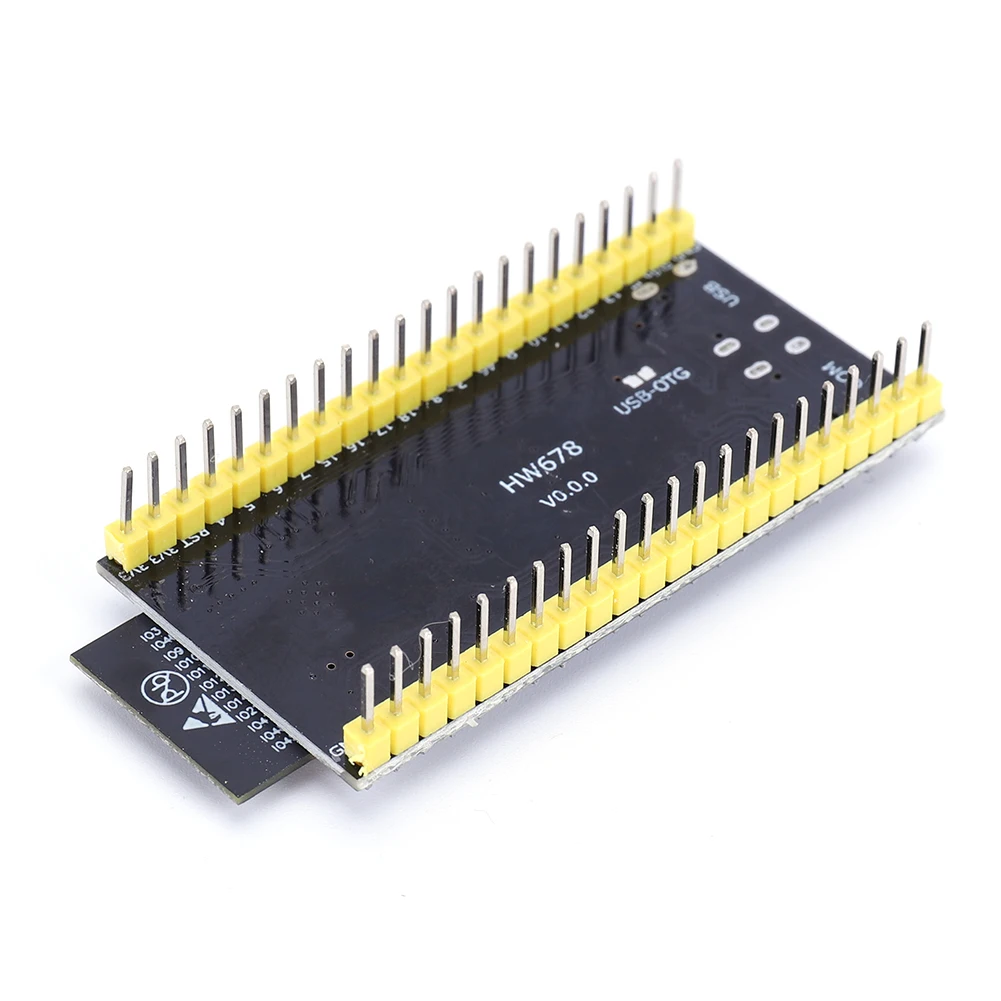

ESP32-S3 N16R8 / N8R2 Dual Type-C WiFi Development Board – for Arduino & IoT Projects

Original price was: € 24,99.Current price is: € 17,99.

SKU: 1005009196778425 Category:
  • ESP32-S3 N16R8 / N8R2 Dual Type-C WiFi Development Board – for Arduino & IoT Projects

    This high-performance ESP32-S3 development board is ideal for building advanced IoT, smart home, and embedded systems. It comes in two versions (N8R2 or N16R8) with dual Type-C interfaces, onboard RGB WiFi status LED, and up to 36 GPIOs for sensors, displays, or actuators.


    ✅ Key Features

    ESP32-S3-WROOM-1 Core
    Built around the powerful dual-core Xtensa 32-bit LX7 microprocessor, optimized for wireless communication, neural network processing, and low-power applications.

    Dual Type-C Ports
    One Type-C port (COM) is used for standard communication, and the second (USB) supports OTG and firmware flashing with BOOT mode.

    RGB WiFi Indicator (IO48)
    The onboard RGB LED lights up automatically when connected to WiFi and turns off when disconnected—providing a smart visual feedback system.

    Flexible Programming Support
    Compatible with Arduino IDE, ESP-IDF, PlatformIO, MicroPython, and more. Easily integrate into home automation or wearable tech.

    Compact Design
    The ultra-slim 57x28mm form factor makes it ideal for space-sensitive projects like embedded control panels or portable IoT devices.


    🧪 Use Case Examples

    • Home Automation Gateways: Control lights, sensors, or smart appliances with wireless connectivity.

    • Portable Weather Station: Add sensors to monitor temp/humidity and send data to the cloud via WiFi.

    • WiFi-Based RGB Controller: Use the onboard RGB or external WS2812 LED strips for lighting control.

    • Wearables & IoT Prototypes: Compact enough for wearable tech with USB-C for fast firmware flashing.

    • Touch-enabled UI Displays: Connect to TFT touchscreens via SPI or I2C for responsive interfaces.


    📦 Package Variants

    • N8R2 Version (No Soldering):
      Flash: 8MB | PSRAM: 2MB
      Includes: 1x Board, 2x Pin Headers

    • N16R8 Version (No Soldering):
      Flash: 16MB | PSRAM: 8MB
      Includes: 1x Board, 2x Pin Headers

    • N16R8 (Soldered Version):
      Fully soldered for plug-and-play prototyping
      Includes: 1x Board with soldered pins


    📊 Technical Specifications

    • MCU: ESP32-S3-WROOM-1

    • Flash: 8MB (N8R2) / 16MB (N16R8)

    • PSRAM: 2MB (N8R2) / 8MB (N16R8)

    • GPIOs: 36 I/O pins

    • Interfaces: 2x I2C, 4x SPI

    • Voltage: 3.3V–5V

    • USB Ports: Dual Type-C (1x COM, 1x OTG/download)

    • RGB LED Pin: IO48

    • Board Size: 57 x 28 x 4 mm

    • Material: Mixed PCB and components

    • Condition: New


    ⚠️ Important Notes

    • Do not short-circuit the pins — this may damage the module.

    • Ensure power supply is within 3.3V–5V range.

    • Soldering required for non-soldered versions.
